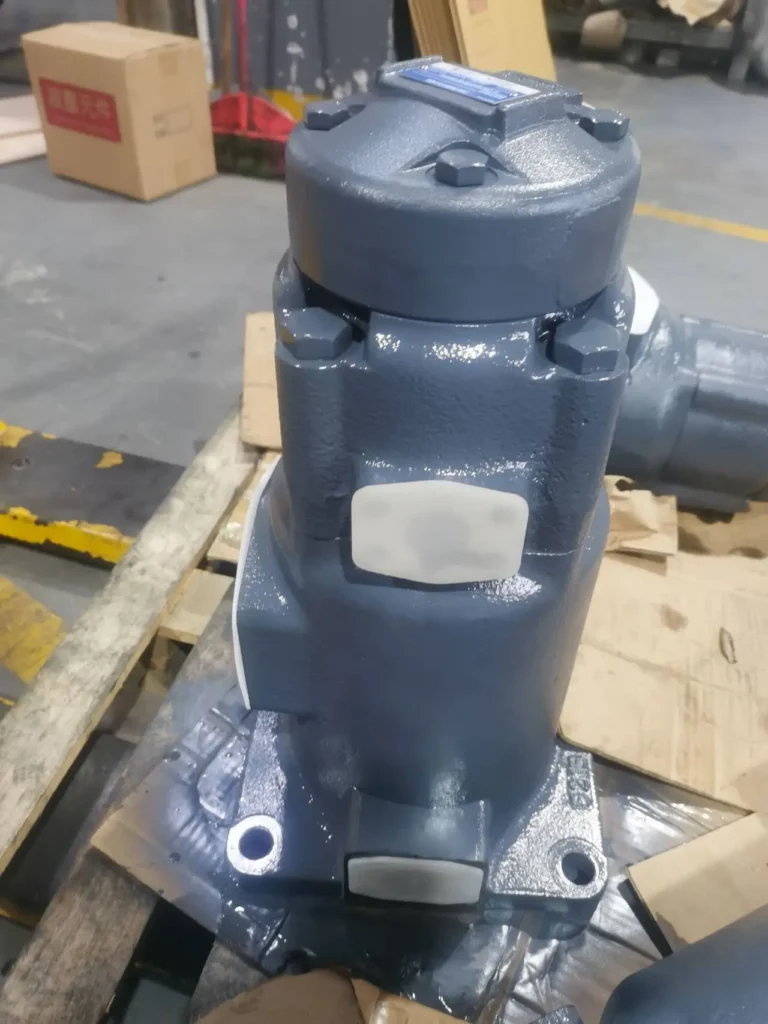

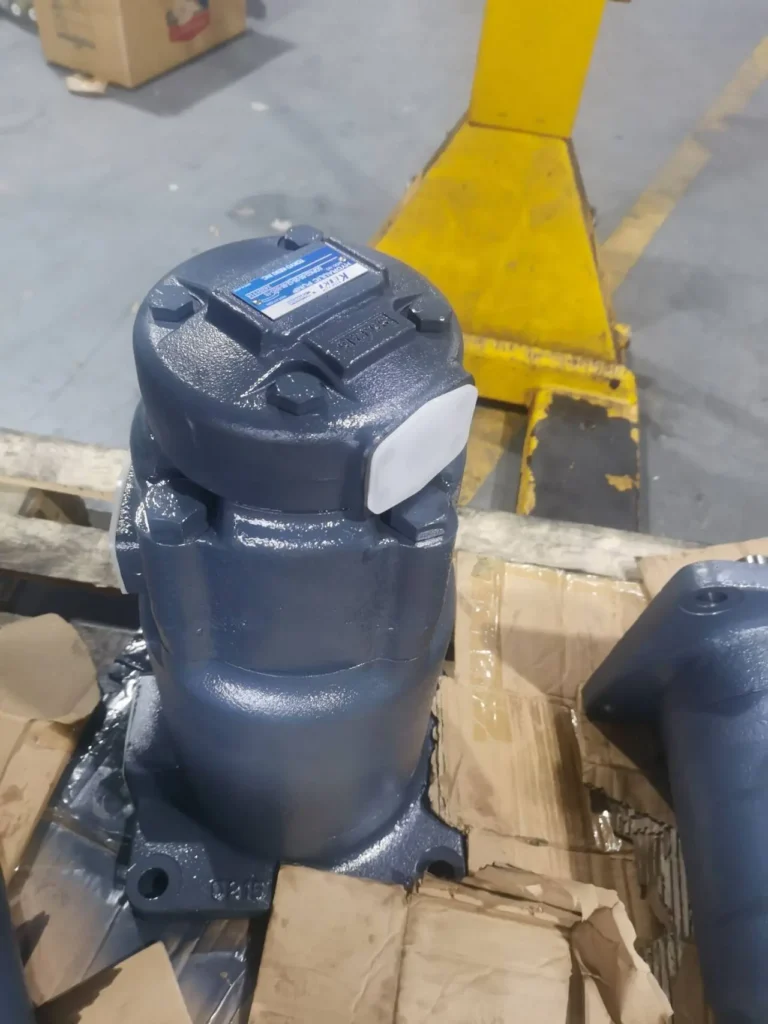

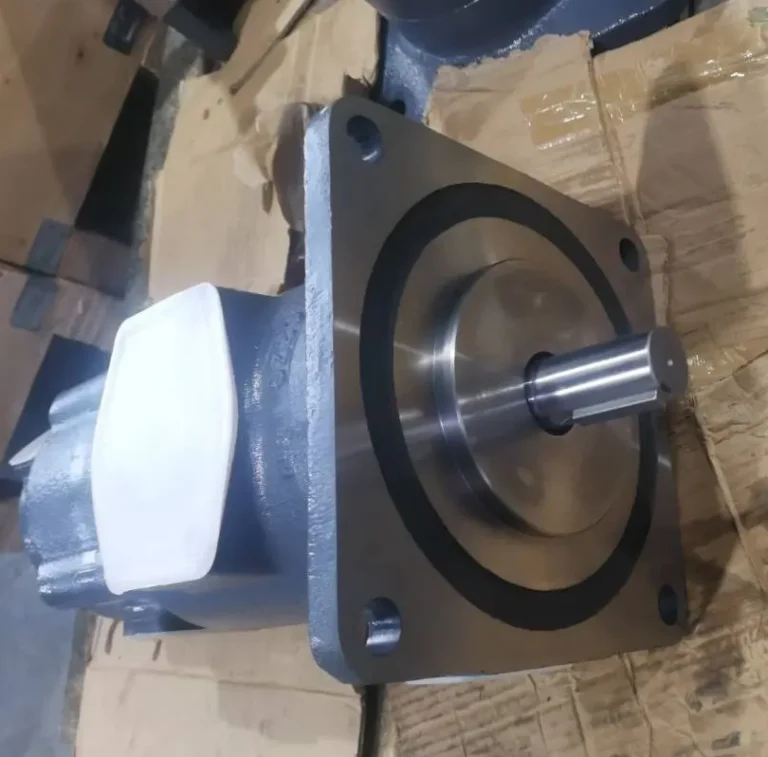

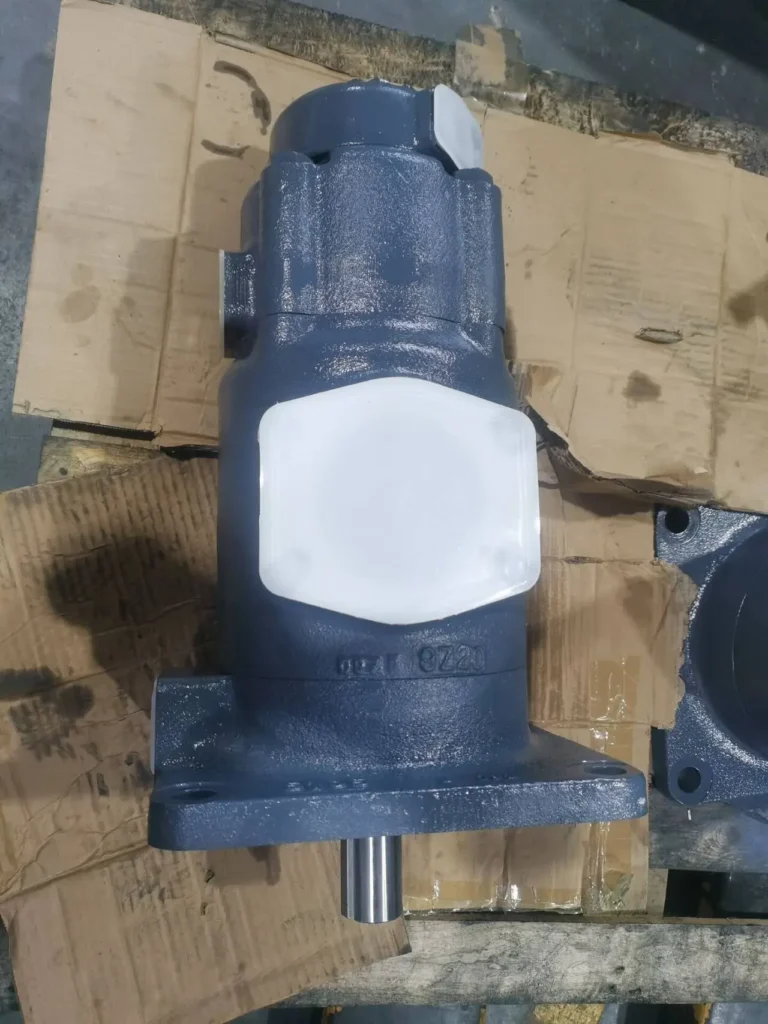

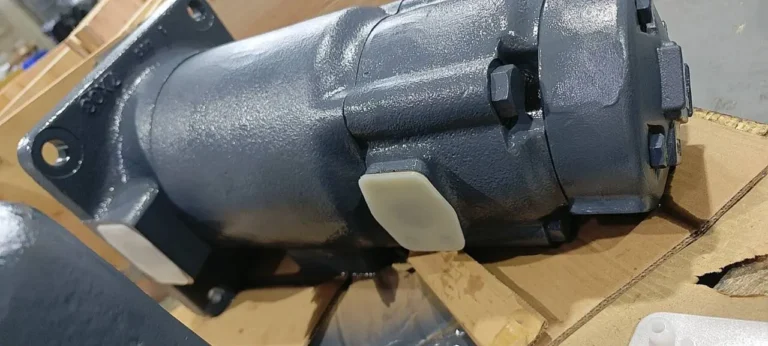

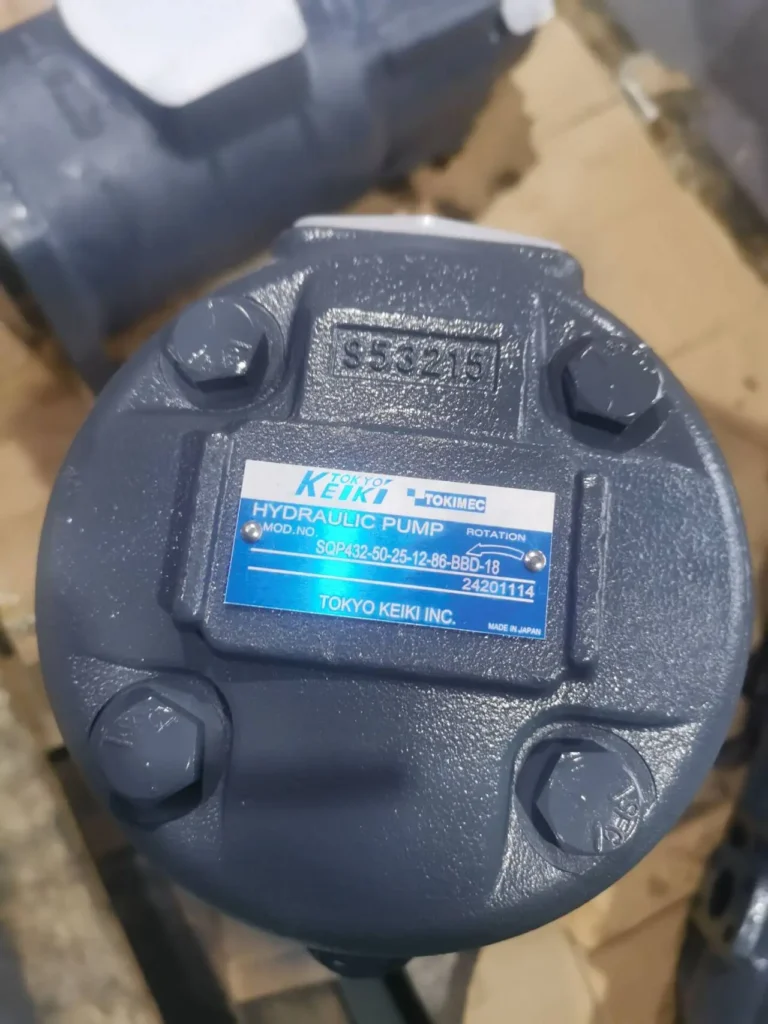

This SQP series hydraulic vane pump is a triple fixed displacement vane pump. It adopts an intra-vane structure, and the multi-stage pump core is driven by one shaft to provide independent oil supply for multiple hydraulic circuits. The vanes keep close contact with the cam ring under hydraulic force to form sealed chambers for oil suction and discharge.
The pump maintains stable volumetric efficiency under continuous working pressure. It features low flow pulsation and low running noise, which helps reduce vibration of the whole hydraulic system. The reinforced housing improves pressure resistance and ensures consistent performance during long-time operation.
A wide range of model combinations are available to meet different flow requirements. It can be matched with standard mineral hydraulic oil and integrated into various medium and high pressure hydraulic systems, commonly used in industrial fixed equipment.
Share：
FEATURES

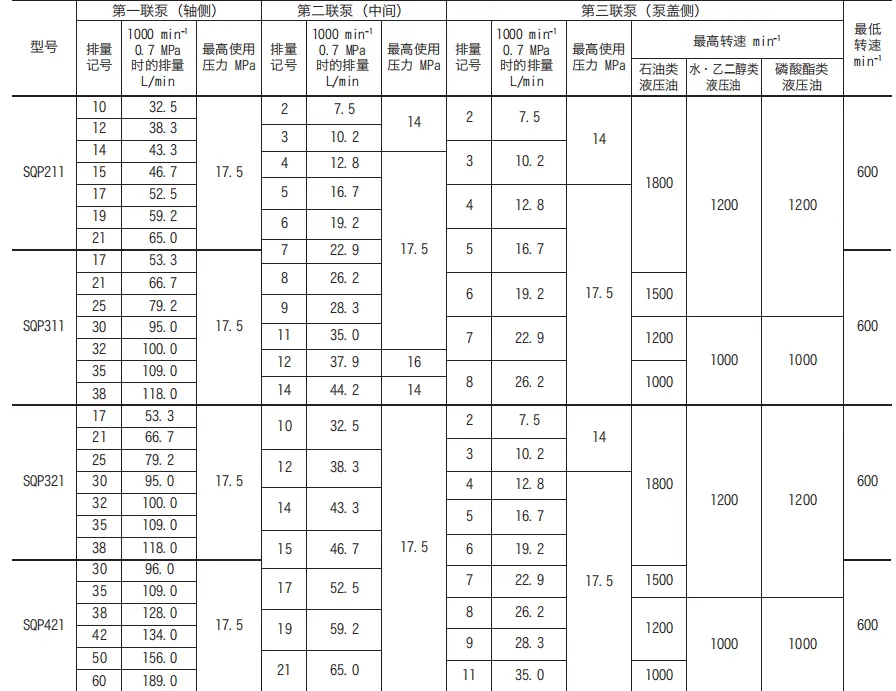

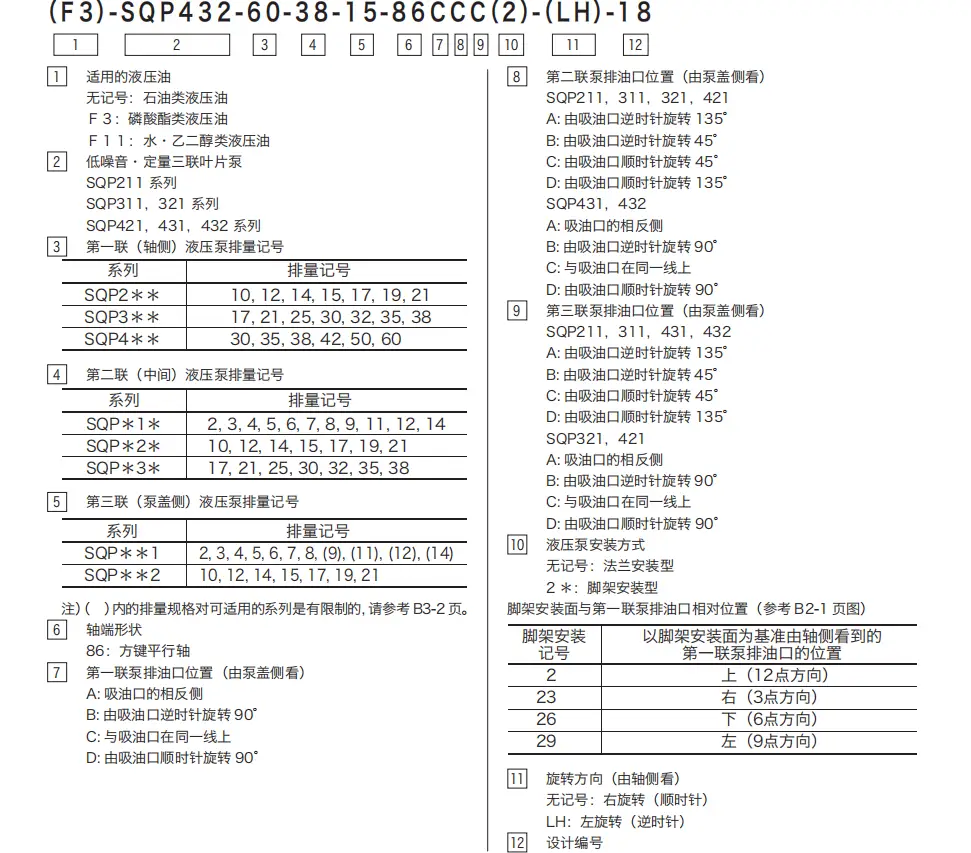

Integrated triple pump design supplies separate flow outputs for multiple hydraulic circuits with only one drive shaft.
Maintains high volumetric efficiency under rated working pressure to offer consistent hydraulic power output.
Optimized internal vane structure reduces flow pulsation and operating noise for quiet system operation.
Replaceable pump cartridge design shortens maintenance time and lowers long-term operation cost.
Compatible with standard mineral hydraulic oil and can be installed on various industrial hydraulic power units.
APPLICATIONS
Absolutely. We provide OEM/ODM services and can manufacture according to your samples or technical drawings.
For in-stock items, we can ship within 3 days. For custom or non-stock items, delivery usually takes 7–15 days. We’ll confirm exact timing based on current inventory.
Yes, but it’s flexible. Spare parts often have an MOQ of 1 piece, while complete pumps or motors vary by model—please inquire for details.
We are a hybrid—both a manufacturer and a trading company. We produce our own products and also source specific components to offer complete solutions.
We follow strict quality control protocols. All parts undergo CNC machining and heat treatment, and each is 100% tested before delivery to guarantee precision and reliability.
We accept T/T, L/C, Western Union, Alibaba Trade Assurance, and VISA. For new customers, we usually require full prepayment or a 30% deposit with the balance due before shipment.
We offer flexible shipping via express carriers (DHL, FedEx, UPS) and sea freight (CIF/FOB). We can also deliver to your designated freight forwarder in China.
All products come with a 1-year warranty, provided they are installed and operated under normal conditions.
Tell us the model, application or target part number. Our sales team will help confirm specifications and quotation details.
